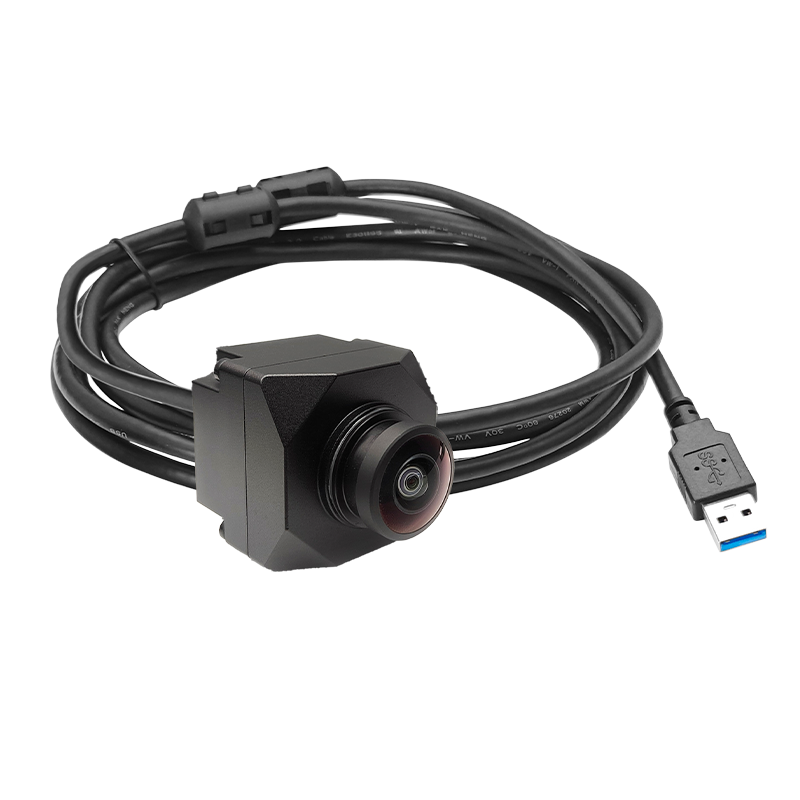

Product Overview
The USB 3.0 high-dynamic-range industrial camera puts high-performance imaging at its core, designed for complex lighting and harsh environments while combining HD image quality with reliable transmission. Its outstanding low-light performance and wide dynamic range suit agricultural machinery, industrial inspection, intelligent security, and rail transit, and flexible optical configurations meet high-precision vision needs across many fields.
Key Features
-
3.0 µm large pixels improve light sensitivity in low-light environments.
-
Integrated ISP image processing optimizes real-time image quality.
-
USB 3.0 interface supports high-speed data transfer with smooth full-frame-rate 30 fps output.
-
YUV422 native-quality output compatible with mainstream image processing systems.
-
-40°C to +85°C operating range for industrial-grade harsh environments.
Specification
| Item | Specification |
| ISP chip | Onchip |
| Optical Format | 1/2.4 inch CMOS |
| Pixel Size | 3.0um |
| Frame Rate | 30 fps (typical) |
| Resolution | 1920（H）x 1536（V） |
| Shutter Type | Rolling Shutter |
| Dynamic Range | 120dB |
| Output Format | YUV422-8bit |
| Color Pattern | RGGB |
| Output Interface | USB3.0 |
| Rated Voltage | 5V |
| Power Consumption | <2W |
| Connector | USB3.0 A male connector |
| Working temperature | -40℃ ～ +85℃ |
| Storage Temperature | -40℃ ～ +105℃ |
| FOV etc. | Refer to specific model |
Model Specifications
| Camera Model | Horizontal FOV | Vertical FOV | Focal Length (mm) | F-number | Ingress Protection |
| AUL1306-S031H60Z00-U3AAIIP67 | 63.9±3° | 50.6±3° | 5.3±5% | 2.0±5% | IP67 |
| AUL1310-S031H31Z00-U3AAIIP67 | 100.0±3° | 78.5±3° | 3.47±5% | 1.8±5% | IP67 |
| AUL1312-S031H54Z00-U3AAIIP67 | 118.54±3° | 75.14±2° | 3.021±5% | 1.8±5% | IP67 |
| AUL1320-S031S1BZ00-U3AAIIP67 | 197.0±3° | 162.3±3° | 1.45±5% | 2.0±5% | IP67 |

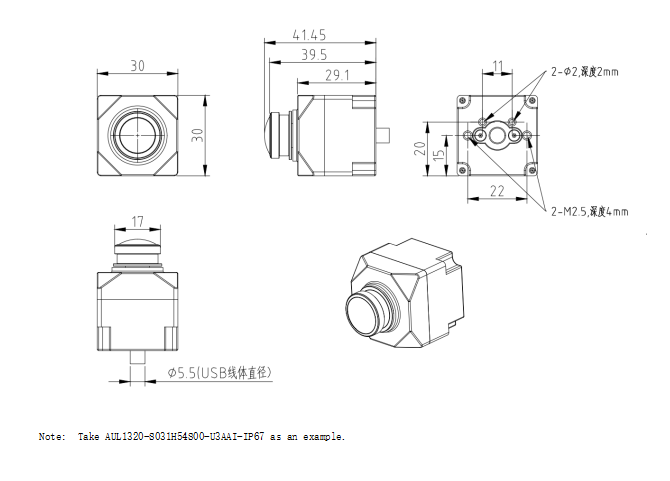

Dimensions
Typical Applications
Agricultural Machinery (e.g., Large Farm Equipment)
Used for navigation and monitoring in modern agricultural robots.
Freight Robot Environmental Perception
Enables real-time obstacle, path, and cargo position recognition, ensuring safe and efficient operation in complex environments.
Industrial Automation & Quality Inspection
Supports high-precision image acquisition and quality control in production lines and automated inspection systems, enabling fast image transmission and recognition.
Rail Transit & Public Safety
Installed on trains and subways to monitor the external environment, enhancing safety.
