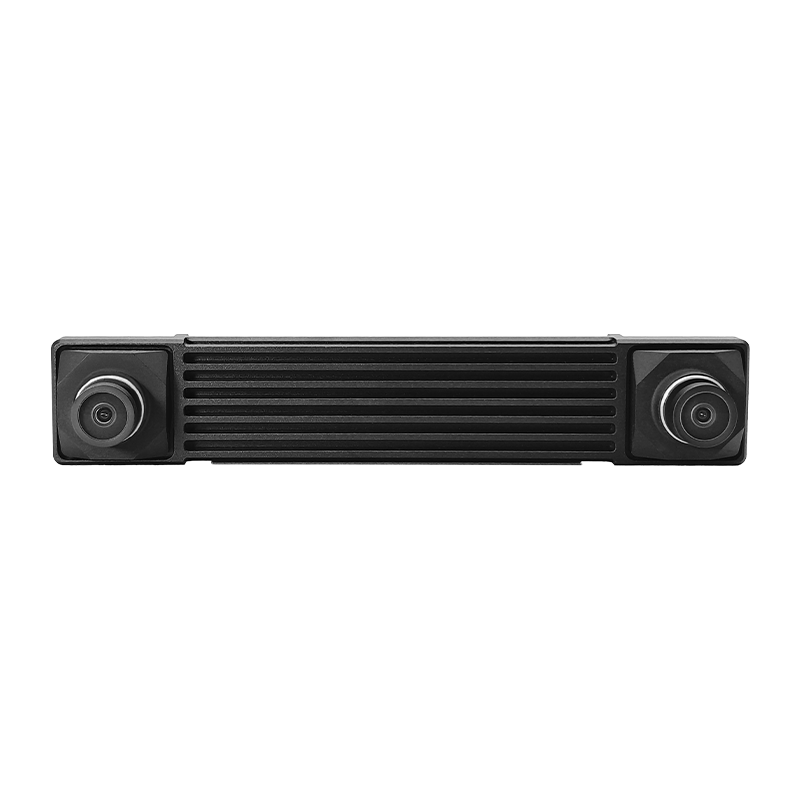

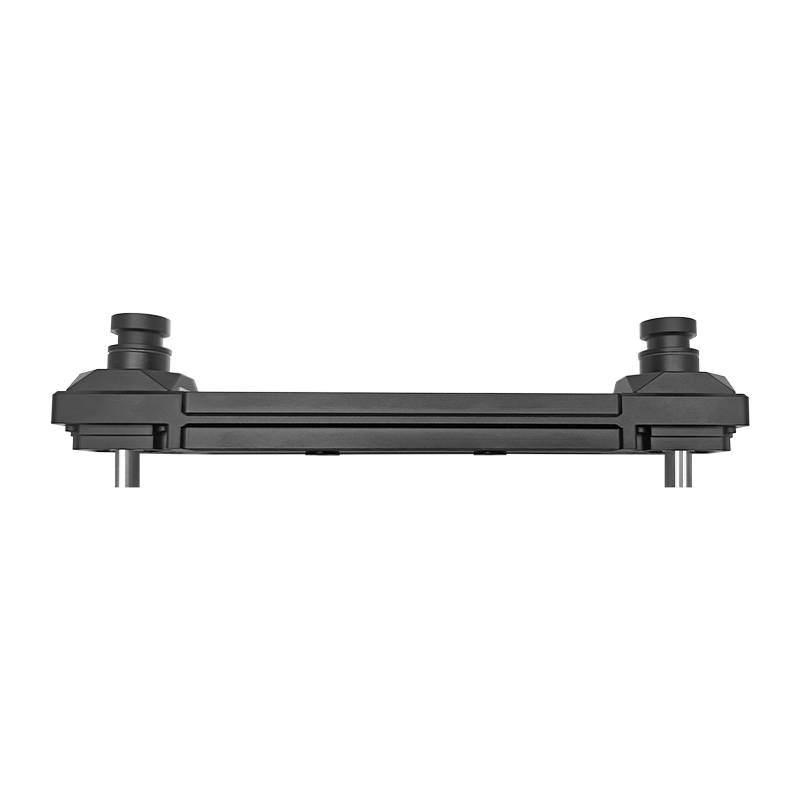

AVS-Z Automotive Stereo Camera

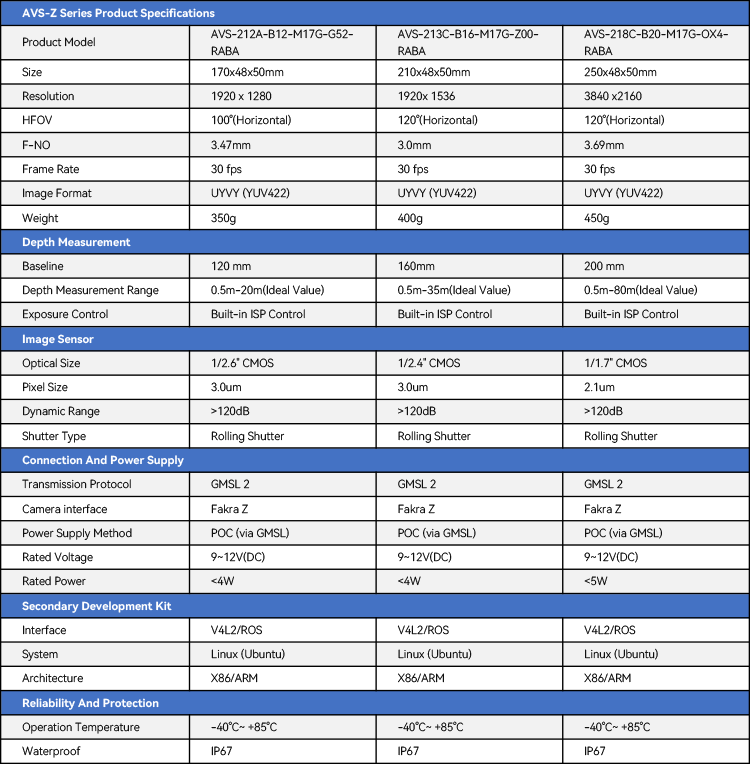

Resolution:1920(H)x1280(V)/1920(H)x1536(V)/3840(H)x2160(V)
Frame Rate: 30fps
Lens: HFOV 100°/120°
Baseline：120/160/200 mm
Image Format：UYVY (YUV422)
Optical size：1/2.6 inch CMOS 1/2.4 inch CMOS 1/1.7 inch CMOS
Pixel size：2.1/3.0μm
Exposure Control: Built-in ISP Control
Interface Type: GMSL 2 / FAKRA Z
Dynamic Range: 120dB
Shutter Mode: Rolling Shutter
Operating Temperature: -40°C ~ +85°C
