Jetson AGX Orin Vision Development Kit

Model: AKT3888-NAO-ZAI

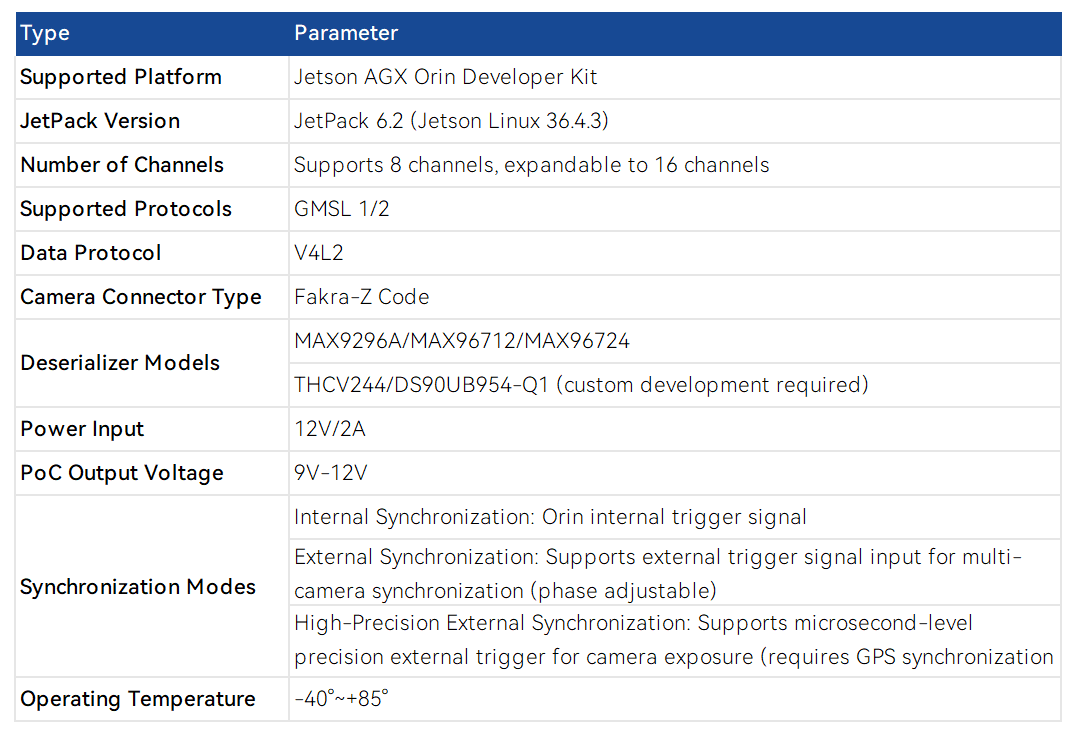

Supported Platform: Jetson AGX Orin Developer Kit

JetPack Version: JetPack 5.1.3 (Jetson Linux 35.5.0) / JetPack 6.2 (Jetson Linux 36.4.3)

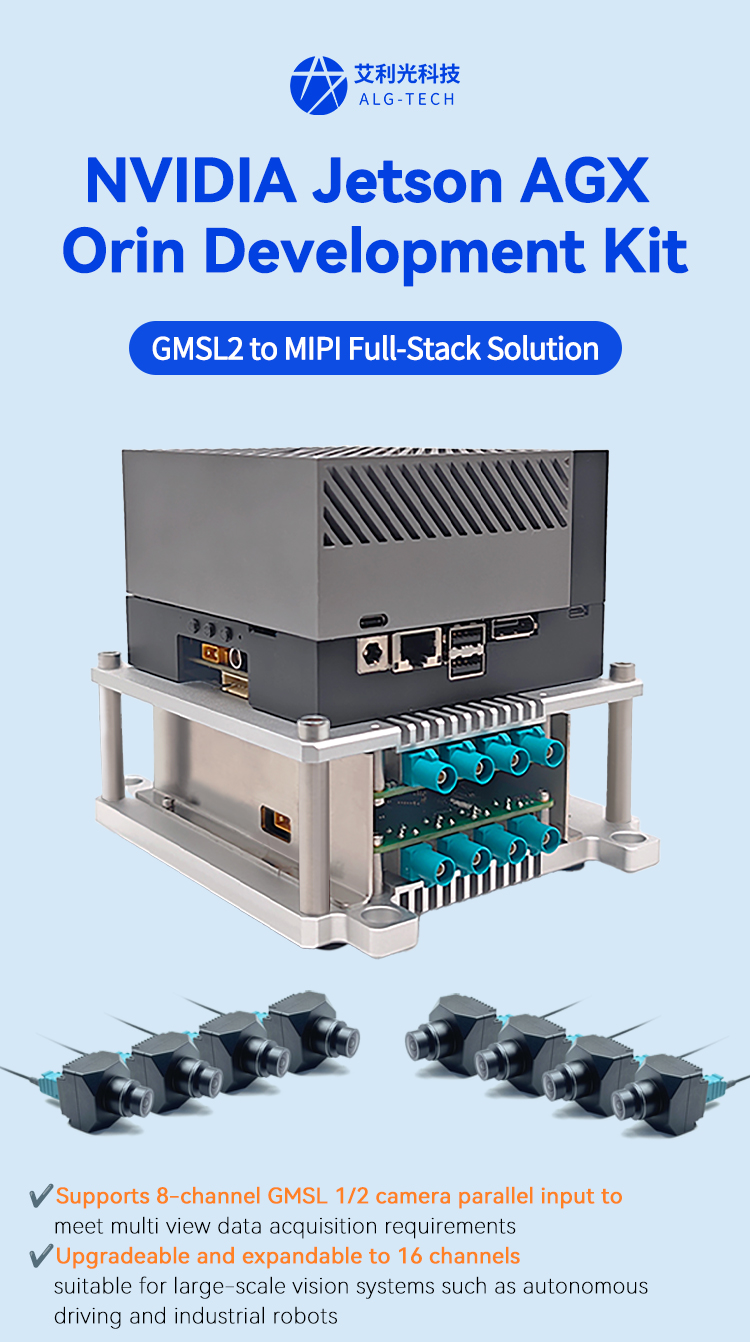

Camera Interface: Supports 8 channels, expandable to 16 channels

Supported Protocols: GMSL1/2

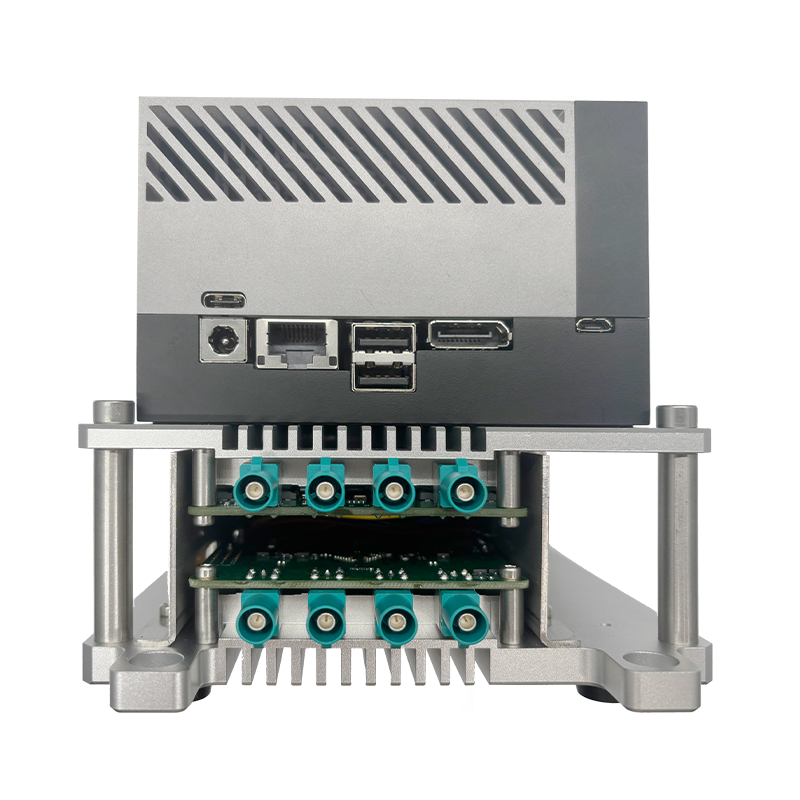

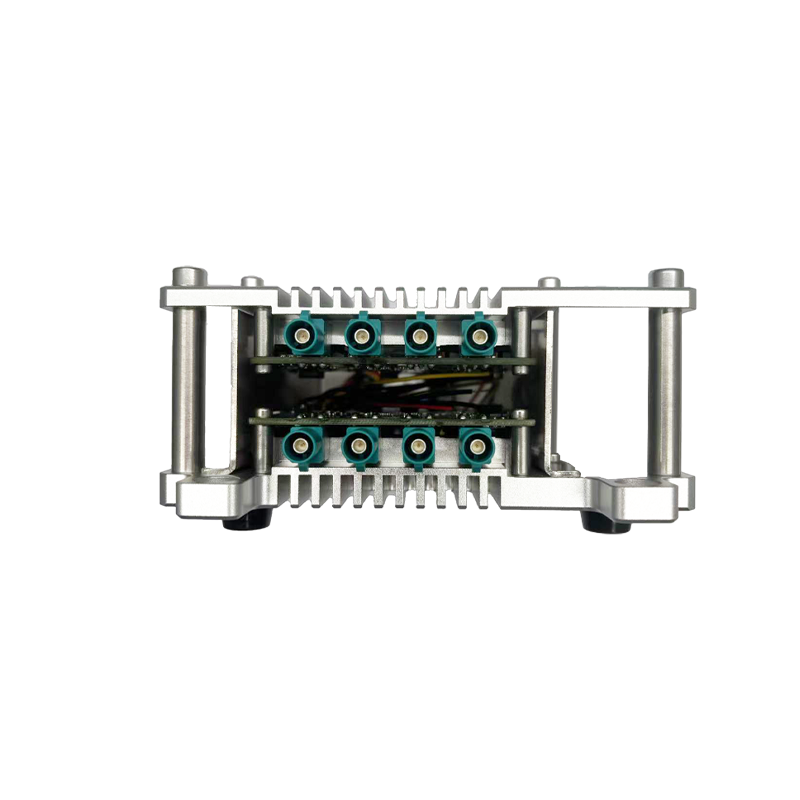

Camera Connector Type: Fakra-Z Code

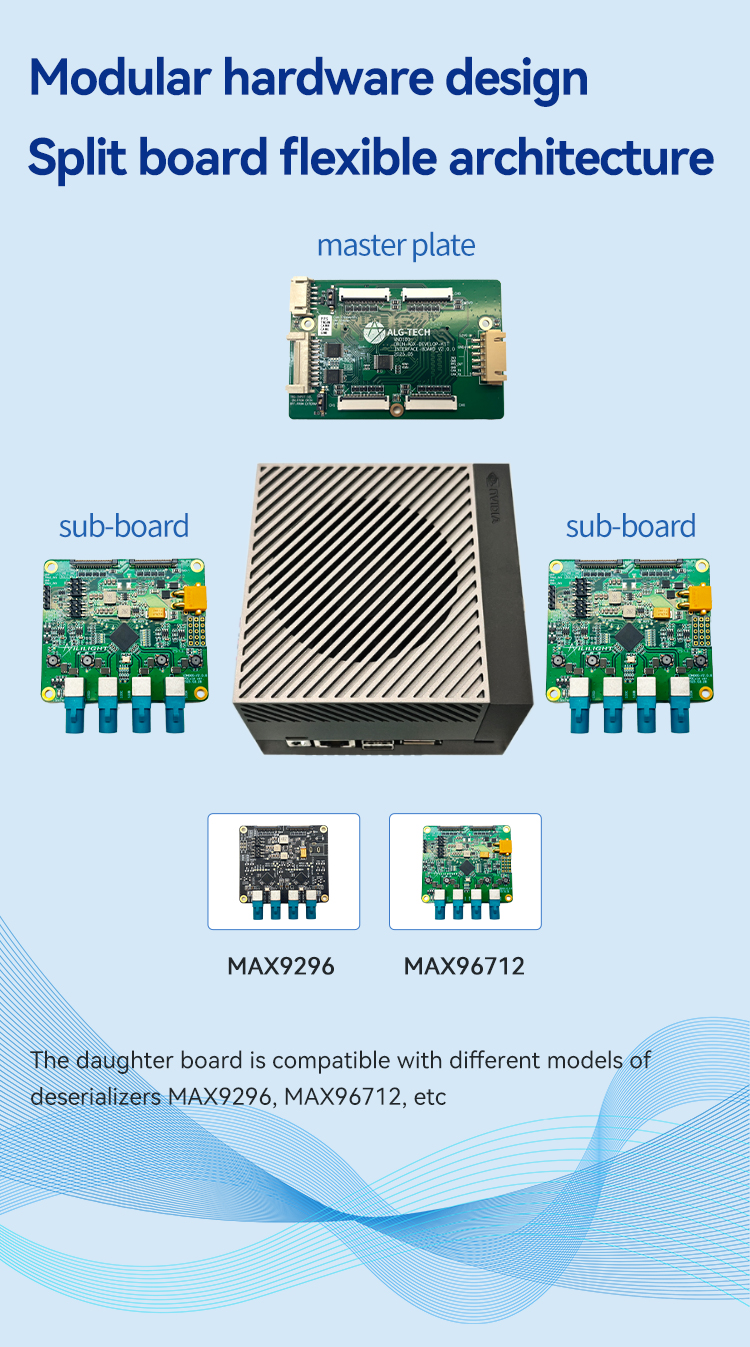

Deserializer Models: MAX9296A / MAX96712 / MAX96724 / DS90UB954-Q1

Internal Synchronization: Orin internal trigger signal

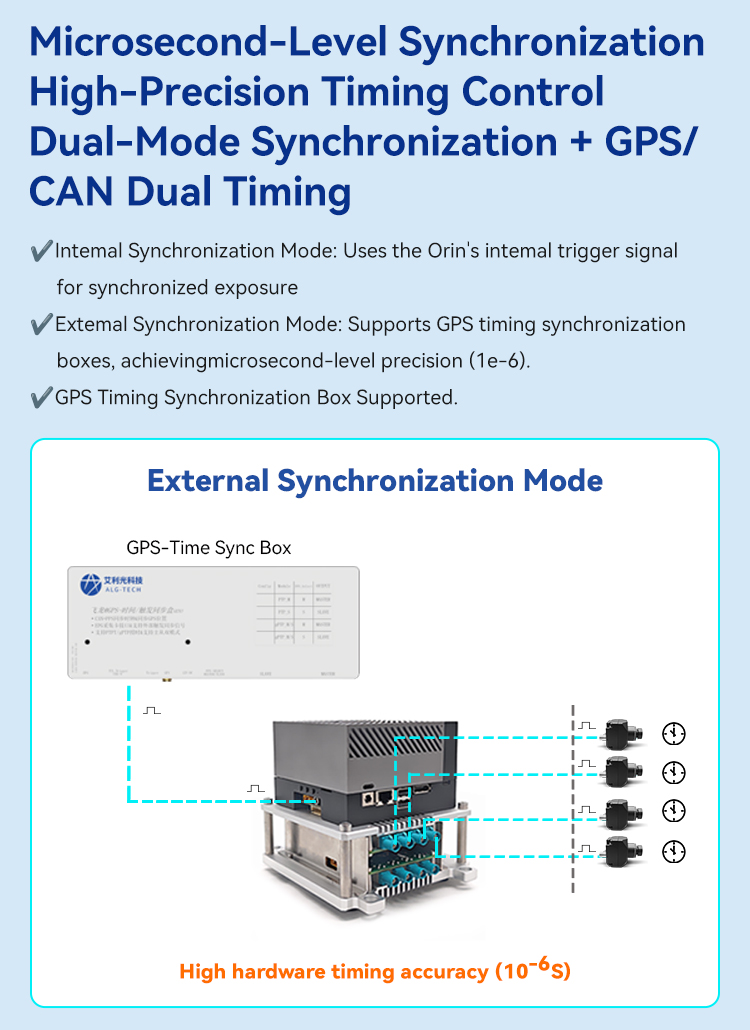

External Synchronization: Supports external trigger input for multi-camera synchronization (phase-adjustable)

High-Precision Synchronization: Supports μs-level external trigger for direct camera exposure (requires GPS synchronization box)

Maximum Transmission Distance: 15m
