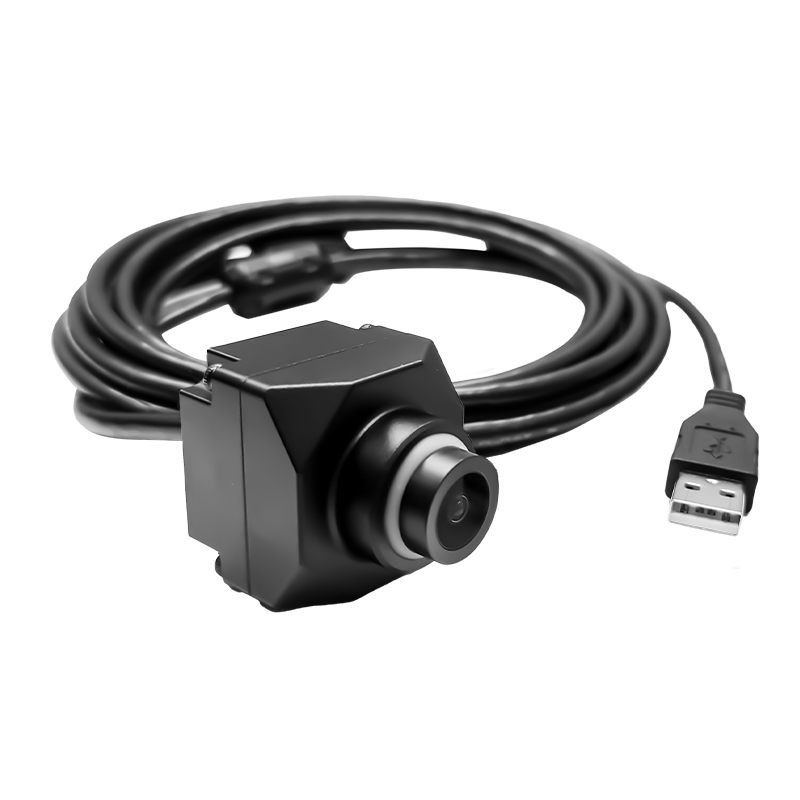

USB2.0 2M machine vision camera

Overview

The 2M machine vision USB camera is an excellent 2M (2 million pixels) high-performance product from ALG-TECH. This camera module utilizes a USB2.0 interface for signal transmission, demonstrating exceptional compatibility. Its convenient design, which allows direct connection to the host, makes application easy and simple.

In terms of performance, the AUL268-S boasts a stable frame rate of 30FPS, ensuring smooth and stutter-free visuals. With a high dynamic range of 85dB and high image quality, it captures clear and detailed images that are rich and realistic. Whether in bright daylight or dim nighttime, it excels in shooting tasks, providing accurate, clear, and reliable visual data support for autonomous driving tests.

1.  Key Features

•


  Superior Imaging Performance

• Large‑pixel photosensitive technology: Equipped with large 3.0 µm pixel size, it significantly improves signal‑to‑noise ratio under low‑light conditions and guarantees clean image quality in dim‑light scenarios.Hardware‑based Wide Dynamic Range (WDR): Delivers up to 85 dB dynamic range. It effectively suppresses highlight overexposure while preserving shadow details, performing reliably under high‑contrast lighting conditions.Ultra‑wide Field of View: Horizontal Field‑of‑View (HFOV) > 100°. A single unit provides extensive scene coverage and minimizes blind spots.

•


  Efficient Video Transmission

• Real‑time Video Preview: Supports high‑frame‑rate output at 30fps in full resolution, ensuring motion‑free images with minimal latency.
• Plug‑and‑Play (PnP): Compliant with the UVC (USB Video Class) protocol. Compatible with mainstream operating systems including Windows, Linux and Android; no third‑party drivers are required.

•


  Industrial‑Grade Reliability

• Harsh‑environment Protection: The unit achieves IP67 ingress protection rating, offering complete dust resistance and short‑term water immersion capability. It ensures long‑term stable operation for outdoor, humid and dusty scenarios.
• Standardized Connectivity: Supplied with a 2.0 m high‑quality shielded cable as standard. Passed strict EMC (Electromagnetic Compatibility) tests to guarantee signal integrity during transmission.

2.  Typical Applications

•


  Environmental Perception for Freight Robots

• For freight robots, cameras undertake environmental‑perception tasks. They detect obstacles, paths and cargo positions in real time to enable safe and efficient robot operation within complex surroundings.
•


  Industrial Production Environment Monitoring

• On production lines and factory floors, cameras monitor manufacturing workflows. Faults and anomalies can be identified promptly to boost production efficiency and product quality.

3.  Specification

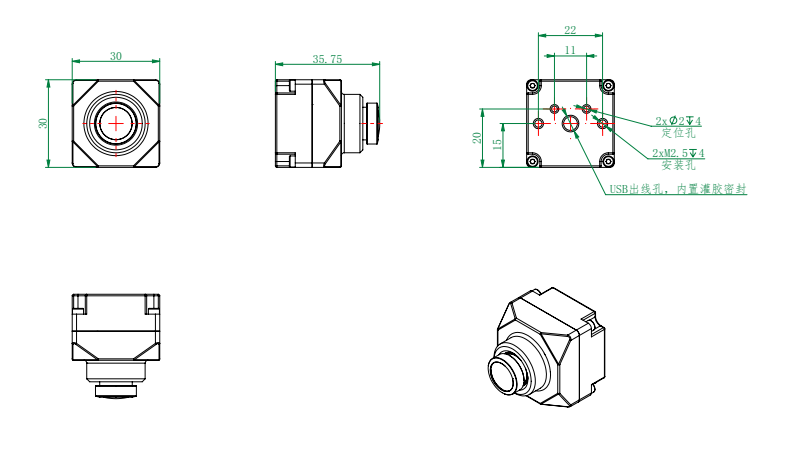

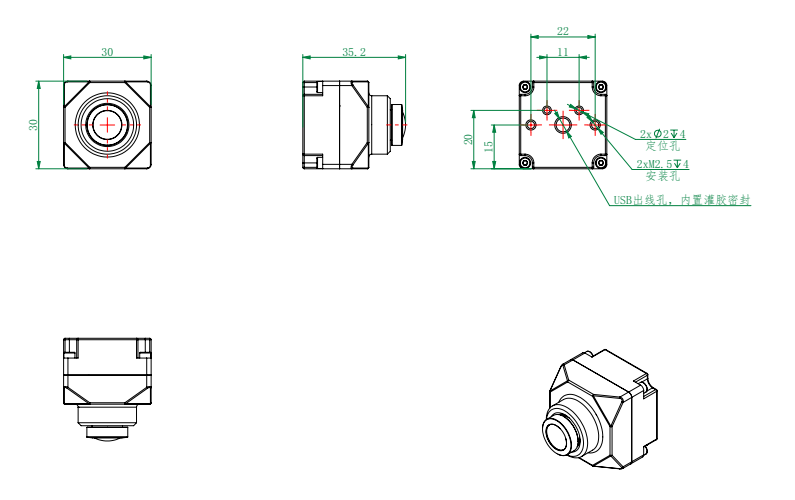

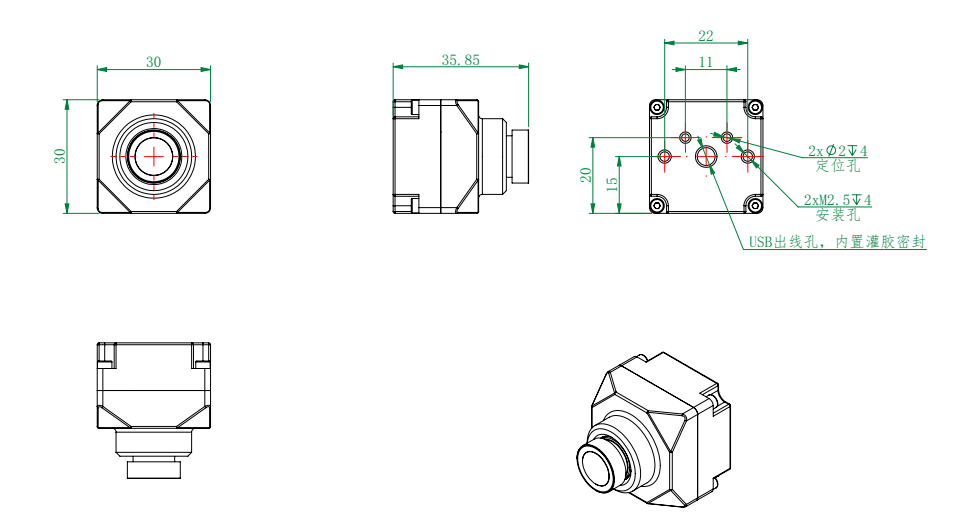

4.  Diagram

• AUL1211-P268-TA6-XR3-U2MPS-IP67

• AUL1212-P268-TE6-XR3-U2MPS-IP67

• AUL1215-P268-T25-XR3-U2MPS-IP67
