NVIDIA Jetson AGX Orin

Product Overview

This product is a GMSL-to-MIPI signal bridge kit designed specifically for the NVIDIA Jetson AGX Orin developer platform. It supports up to 8 channels of GMSL 1/2 camera input, expandable to 16 channels, fully meeting the needs of vision systems across autonomous driving, robotics, and intelligent manufacturing.

The adapter kit uses a main-board plus daughtercard split design that flexibly accommodates multiple deserializer chip types. For time synchronization, combined with ALG Tech’s proprietary GPS timing sync box, it achieves external sync triggering with microsecond-level precision — a solid foundation for high-precision visual perception and data processing.

ALG Tech provides driver support for the kit on Jetson ORIN devices. Paired with ALG Tech automotive camera modules, no additional driver development is required. The driver framework supports the standard Linux V4L2 protocol and is compatible with the latest JetPack releases.

Key Features

  • Multi-Channel Input

    Up to 8 channels of GMSL 1/2 camera input for parallel multi-camera capture; expandable to 16 channels on demand for more complex system integration.

  • Modular Hardware Design

    ALG Tech’s proprietary split-board architecture supports multiple deserializer chips (MAX9296, 96718, 96712, 96722, and more) that can be swapped flexibly. Customization services extend support to FPD-Link III/IV and other transport protocols.

  • Efficient System Integration

    Complete driver adaptation and camera configuration sequences for ALG Tech cameras, supporting the V4L2 protocol. The driver framework is also compatible with other vendors’ camera models — flexible and universal, boosting development efficiency.

  • High-Precision Synchronization

    Internal and external sync modes keep exposure triggering consistent across channels. CAN bus external timing is supported; combined with the GPS timing sync box, microsecond-precision triggering meets the most demanding timing-control scenarios.

  • Powerful Power Delivery

    12 V/1A per channel with up to 96 W total capacity, keeping high-power devices running stably.

  • Thermal and Structural Optimization

    Side cable-exit design improves assembly convenience and wiring tidiness. Thermal design is optimized for high-power operation, ensuring long-term stable running.

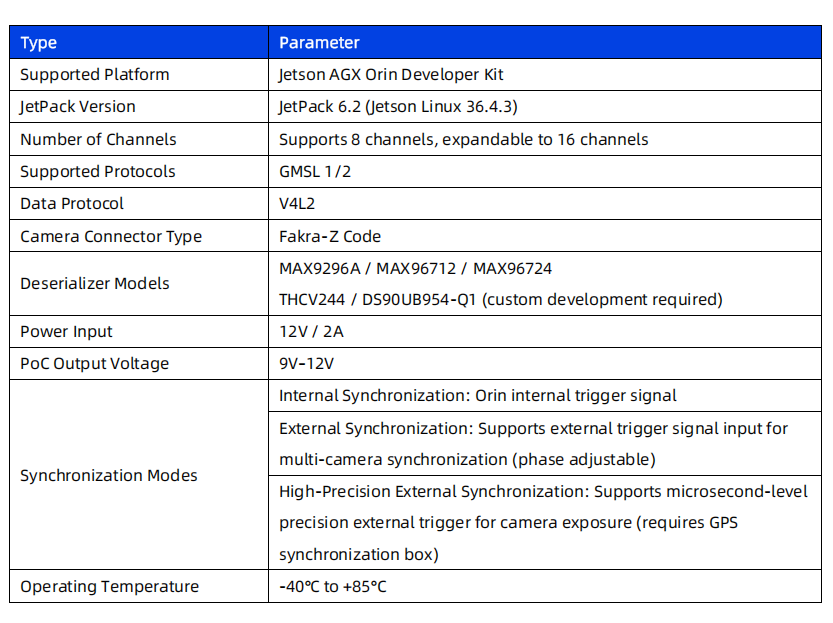

Specification

Item Specification
Supported Platform Jetson AGX Orin Developer Kit
JetPack Version JetPack 6.2 (Jetson Linux 36.4.3)
Channels 8, expandable to 16
Supported Protocols GMSL 1/2
Data Protocol V4L2
Camera Interface Type Fakra Z Code
Deserializer Chips MAX9296A / MAX96712 / MAX96724; THCV244 / DS90UB954-Q1 (custom development required)
Power Input 12 V / 2 A
PoC Output Voltage 9-12 V
Synchronization Internal sync: Orin internal trigger signal; External sync: external trigger input with adjustable phase offset for multi-camera sync; High-precision external sync: microsecond-precision external sync signals trigger camera exposure directly (requires GPS sync box)
Operating Temperature -40°C to +85°C

Ordering Information

Name Model Contents

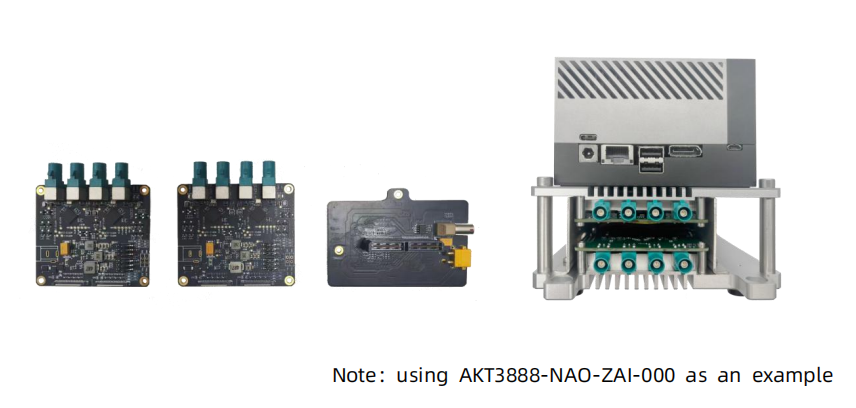

Jetson AGX Orin Vision Development Kit AKT3888-NAO-ZAI-000 Main board x1, deserializer boards x2, FPC harness x4
Jetson AGX Orin Vision Development Kit AKT3888-NAO-ZAI-001 Main board x1, deserializer boards x2, FPC harness x4, 3MP cameras x8, Fakra harness x8
Jetson AGX Orin Vision Development Kit AKT3888-NAO-ZAI-002 Main board x1, deserializer board x1, FPC harness x2, 8MP cameras x2, Fakra harness x2
Jetson AGX Orin Vision Development Kit AKT3888-NAO-ZAI-003 Main board x1, deserializer boards x2, FPC harness x4, 8MP cameras x4, Fakra harness x4

Typical Applications

 Robotic Vision Systems

Multi-channel vision input solution for autonomous navigation and object recognition.

Industrial Visual Inspection

Multi-station coordinated imaging with high-frequency trigger capture and analysis, enhancing automation efficiency.

Intelligent Traffic Monitoring

Centralized access for traffic cameras at high-speed intersections and multi-lane roads, supporting stable long-distance wiring.

Autonomous Driving Systems

Synchronized acquisition from multiple high-definition cameras to build a full 360-degree visual perception system.

Device Interface

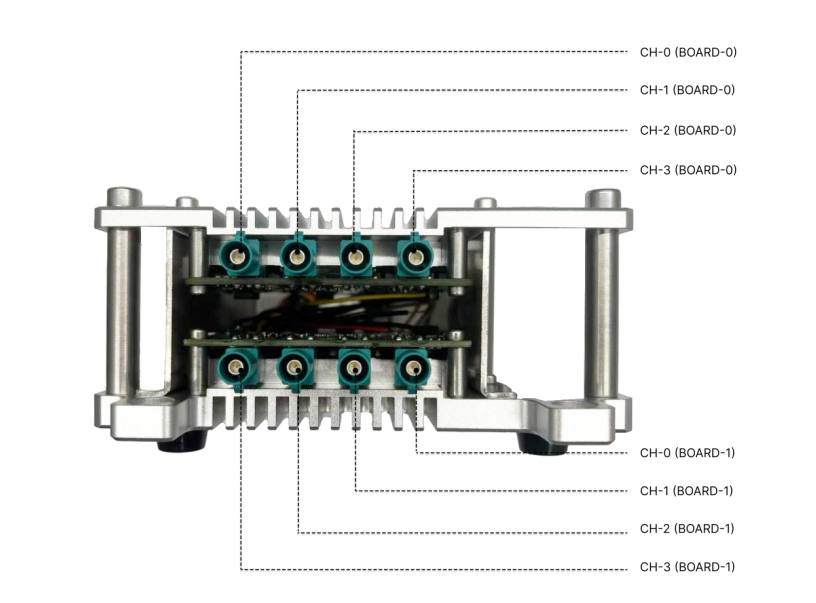

Camera Interface

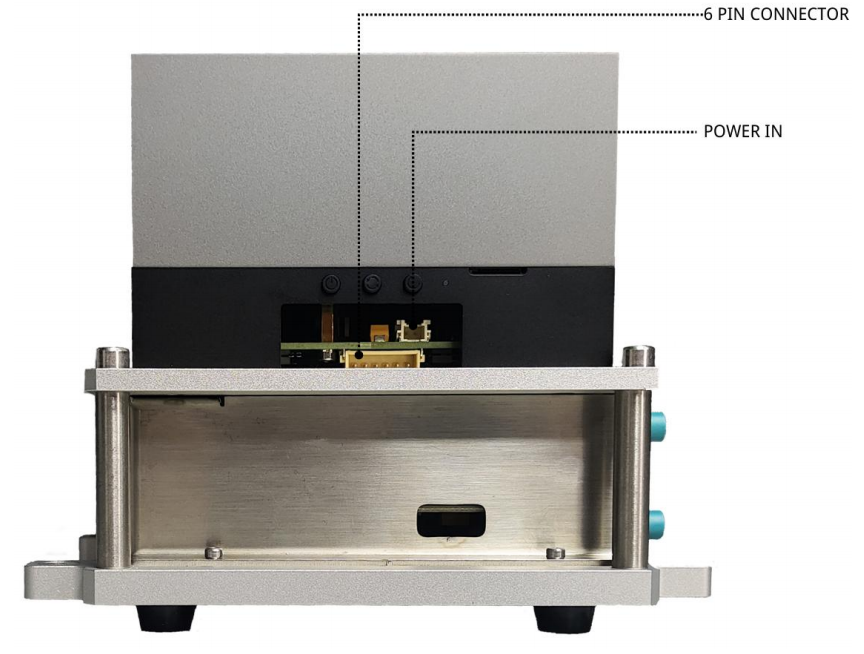

Side Interface

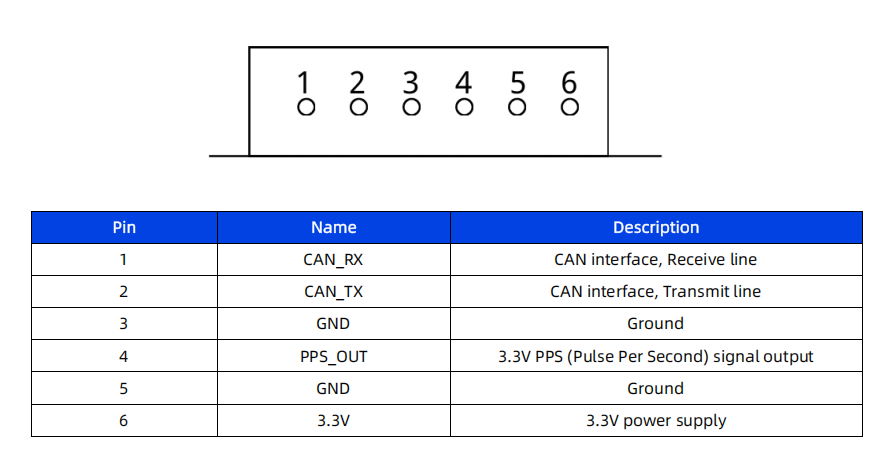

6-PIN Connector Pin Definition

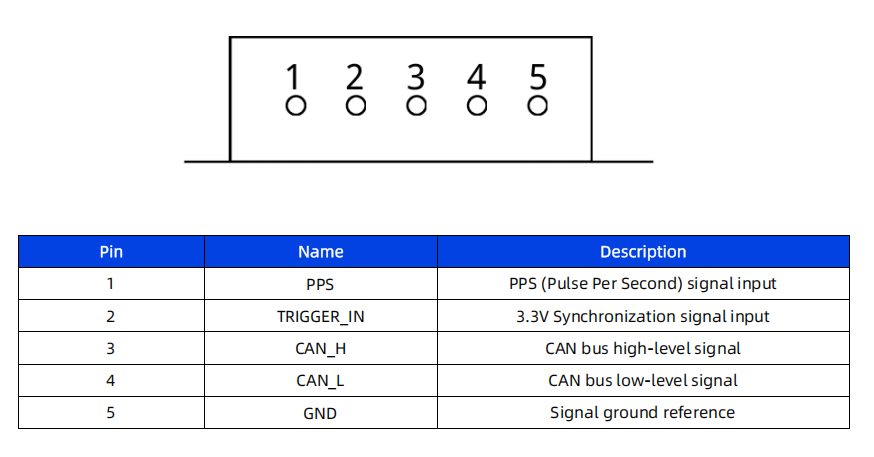

5-PIN Connector Pin Definition
