General Description

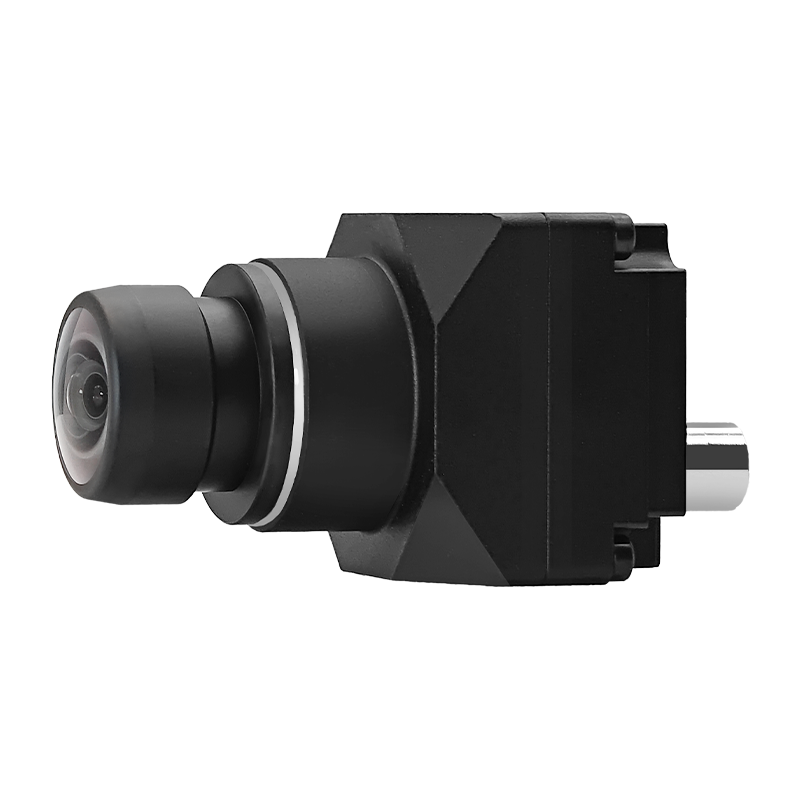

The ALX8B series camera module is a high-performance 8-megapixel camera designed by ALG-TECH. It features Omnivision’s high-performance OX08B40 automotive grade image sensor. It also utilizes GMSL protocol for low-latency and reliable multimedia data transmission. This camera module delivers impressive high dynamic range over 120dB, enabling capture across extreme lighting conditions, from intense sunlight to low-light scenarios, and in the same time maintains extremely low dark noise. This camera module is equipped with multi-element aspherical glass lenses, ensuring clear image even in complex environments. Powered by built-in image signal processor (ISP), the ALX8B module provides advanced real-time image enhancement, including noise reduction and color accuracy. These capabilities, combined with its robust design, make it an ideal front-view camera solution for L2 to L4 autonomous driving systems.
BUY NOW
Features
2.1. High Resolution
- Up to 8.3Megapixel (3840X2160) resolution, suitable for autonomous driving scenarios requiring high-precision perception.
2.2. Excellent Low-Light Performance
- Utilizing advanced backside-illuminated CMOS technology, it delivers clear images even in nighttime or low-light environments
2.3. High Dynamic Range
- Over 120dB High Dynamic Range (HDR), enabling detail capture in complex environments where bright and dark areas coexist.
- Wide Temperature Operating Range
- Designed to meet the rigorous demands of automotive environments, it supports a wide operating temperature range of -40°C to 85°C, ensuring normal operation under extreme weather conditions.
- GMSL 2 High-bandwidth Data Transmission
- Utilizes GMSL 2(Gigabit Multimedia Serial Links) protocol for transmission, providing high-bandwidth and low-latency multimedia data communication, with the advantages of long-distance, anti-interference and enhanced reliability.
- High Reliability Design
- The module features robust packaging and protective design, offering resistance to vibration, dust, and water, and complies with automotive-grade quality standards.
- LFM
- Support LED Anti-Flicker function
- Multi-Modality Sensor Fusion
- Support external synchronization, enables time-sync with LiDAR, millimeter-wave radar, and other sensors.
Typical Applications
- Advanced Driver Assistance Systems (ADAS)
- Enables object recognition and analysis of the vehicle’s surrounding environment, such as pedestrian detection, vehicle detection, and lane departure warning.
- Autonomous Driving
- Provides high-precision environmental perception image data to support fully autonomous driving solutions.
Specification
| Type | Parameters | Annotation |
| CMOS Sensor | OV OX08B40 | |
| ISP chip | OAX4000 | |
| Optical Factor | 1/1.7 inch CMOS | |
| Pixel size | 2.1um | |
| Frame rate | 30fps(typical) | |
| Resolution | 3840（H）x 2160（V） | |
| Exposure mode | Rolling Shutter | |
| Dynamic range | 120-130dB | |
| Image format | YUV422-8bit | 0x1b |
| Color Pattern | RGGB | |
| Serializer chip | MAXIM Max9295A/Max96717 | |
| Output interface | GMSL2(LVDS) | |
| Working voltage | 9V-12V | |
| Package type | CSP | |
| Camera interface | Coaxial | |
| Camera interface | 安费诺（默认Z Type Fakra） | |
| Operating temperature | -40℃ ～ +85℃ | |
| Storage temperature | -40℃ ～ +105℃ |
Model and Lens
| Model Number | HFOV | VFOV | EFL | F.no | Waterproof |
| ALI2803-OCH-SABA-IP67 | 30.0±2° | 16.9±2° | 15.4±5% | 1.6±5% | IP67 |
| ALI2812-OCH-SABA-IP67 | 123.2±3° | 70.0±3° | 3.69±5% | 1.6±5% | IP67 |
System Description
| Type | Parameter | Comment |
| Serializer Model | MAXIM Max96717 | |
| IIC Address | 0x80(8bit address) | |
| CMOS Clock Frequency | Provided by MFP4 | 24MHz |
| GMSL2 Rate | 6Gbps | |
| CMOS Reset Control Pin | MFP1 | Default pulled high to 1.8V externally |
| ISP Reset Control Pin | MFP8 | Default pulled low with a 1K resistor to GND |
| IIC Pin | SDA use MFP9
SCL use MFP10 |
SDA: connect with ISP SSDA
SCL: connect with ISP SSCL |
| CMOS Exposure Synchronization Signal (FSIN) | Provided by ISP’s FSYNC0 | Controls exposure timing via ISP chip |

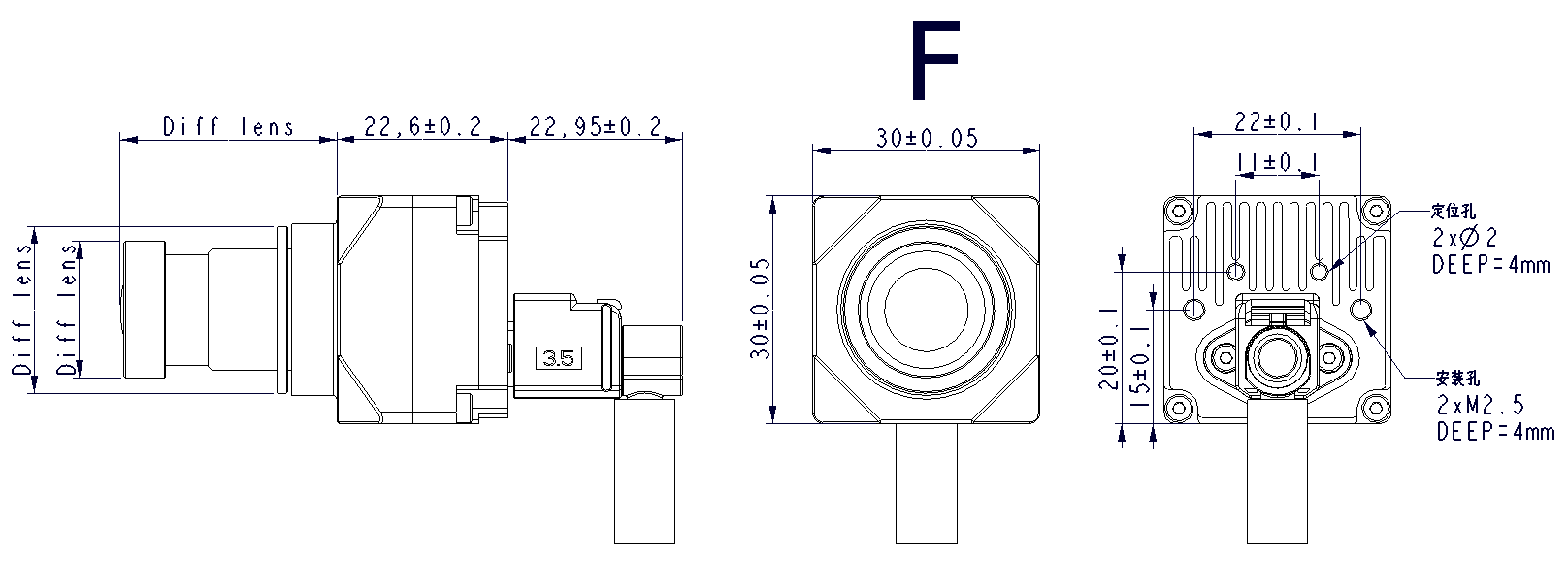

Dimensions
Accessories
| Name | Model | Specification | Quantity |
| Amphenol female to female cable | 344-00006-10321 | Waterproof Φ2.8 coaxial shielded wire-RG174 L=2000MM | 1 |
| Amphenol male to female cable | 344-00006-10321B | Waterproof Φ2.8 coaxial shielded wire-RG174 L=2000MM | 1 |
